SPECIFICATIONS

Brand Name: other

Certification: CE

Choice: yes

High-concerned chemical: None

Model Number: Z600

Origin: Mainland China

Features:

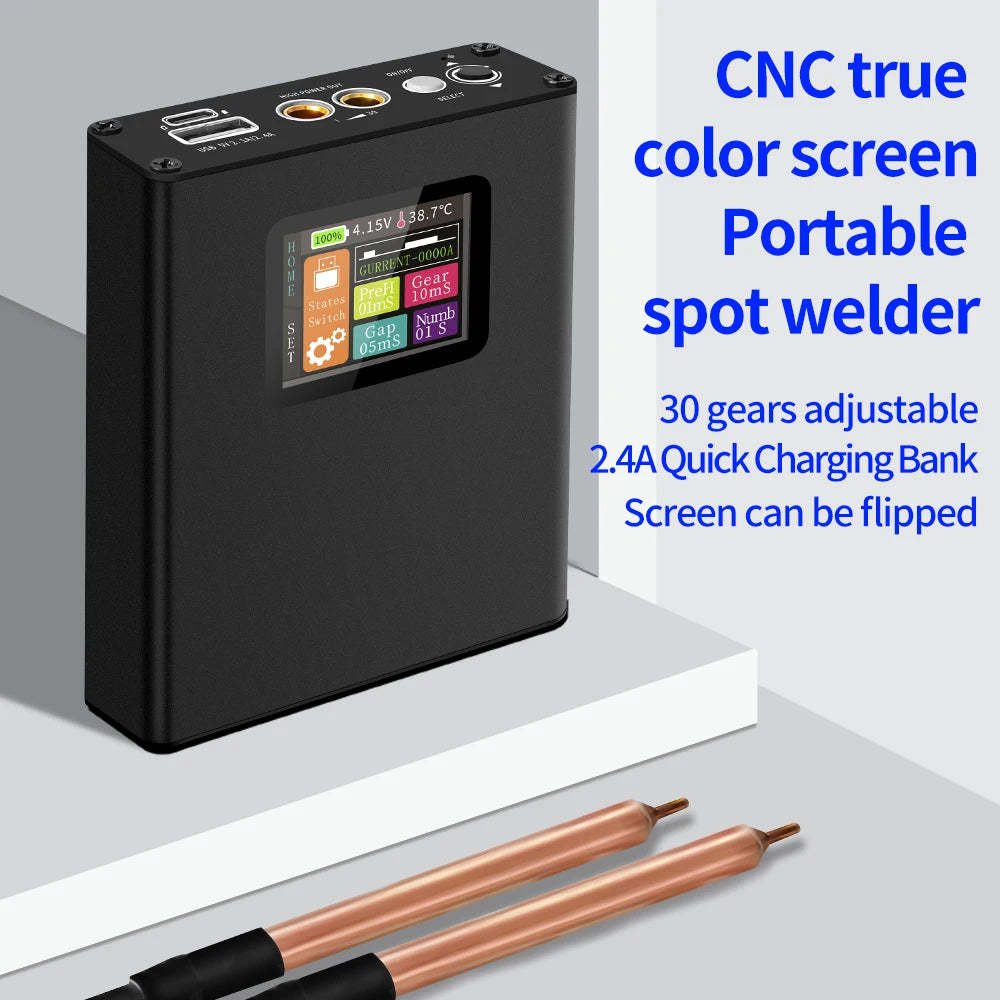

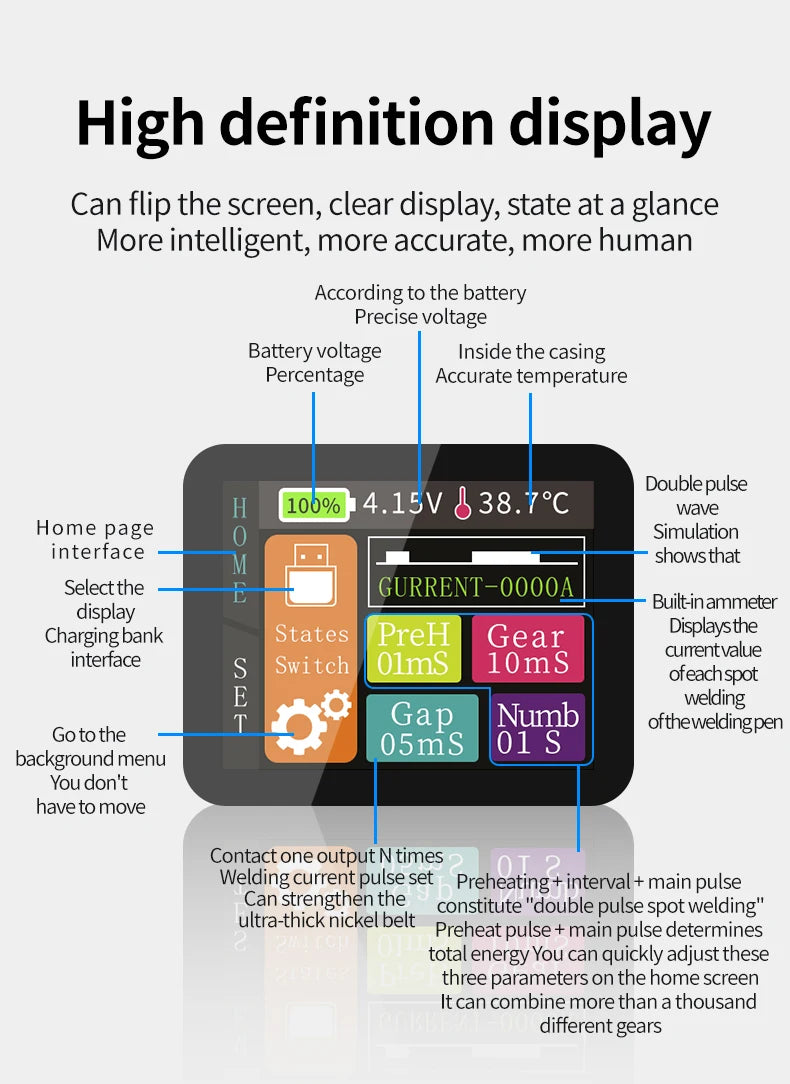

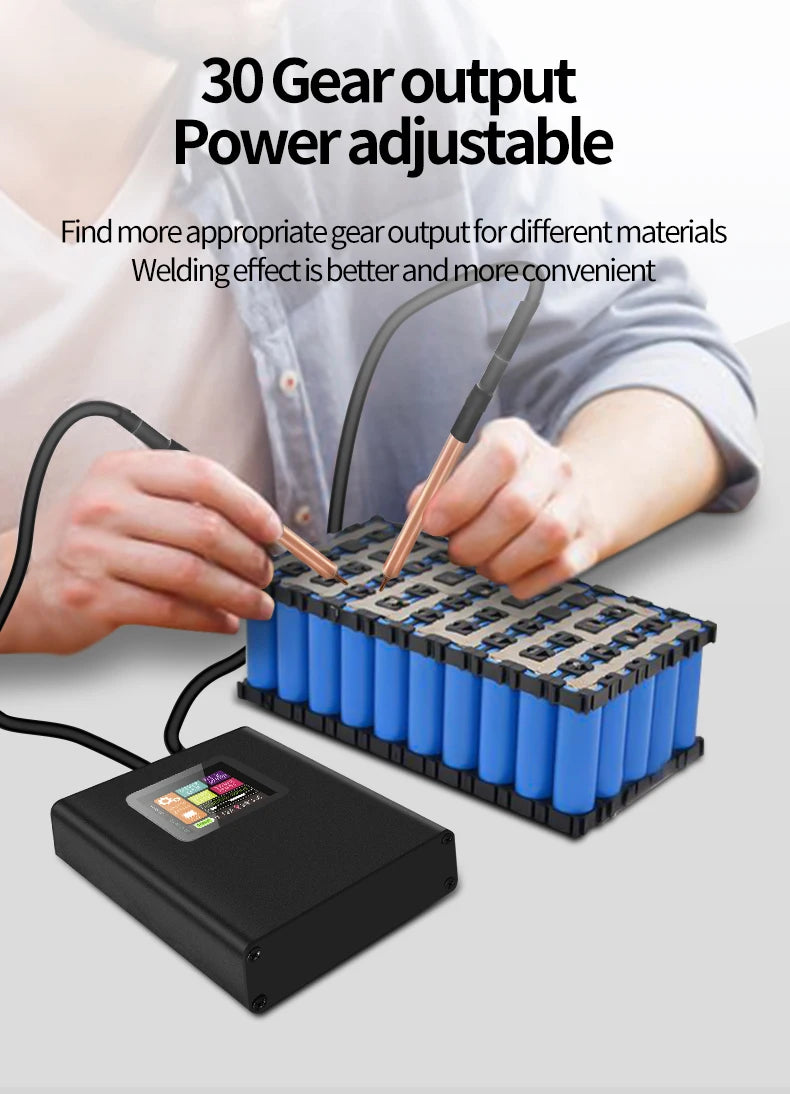

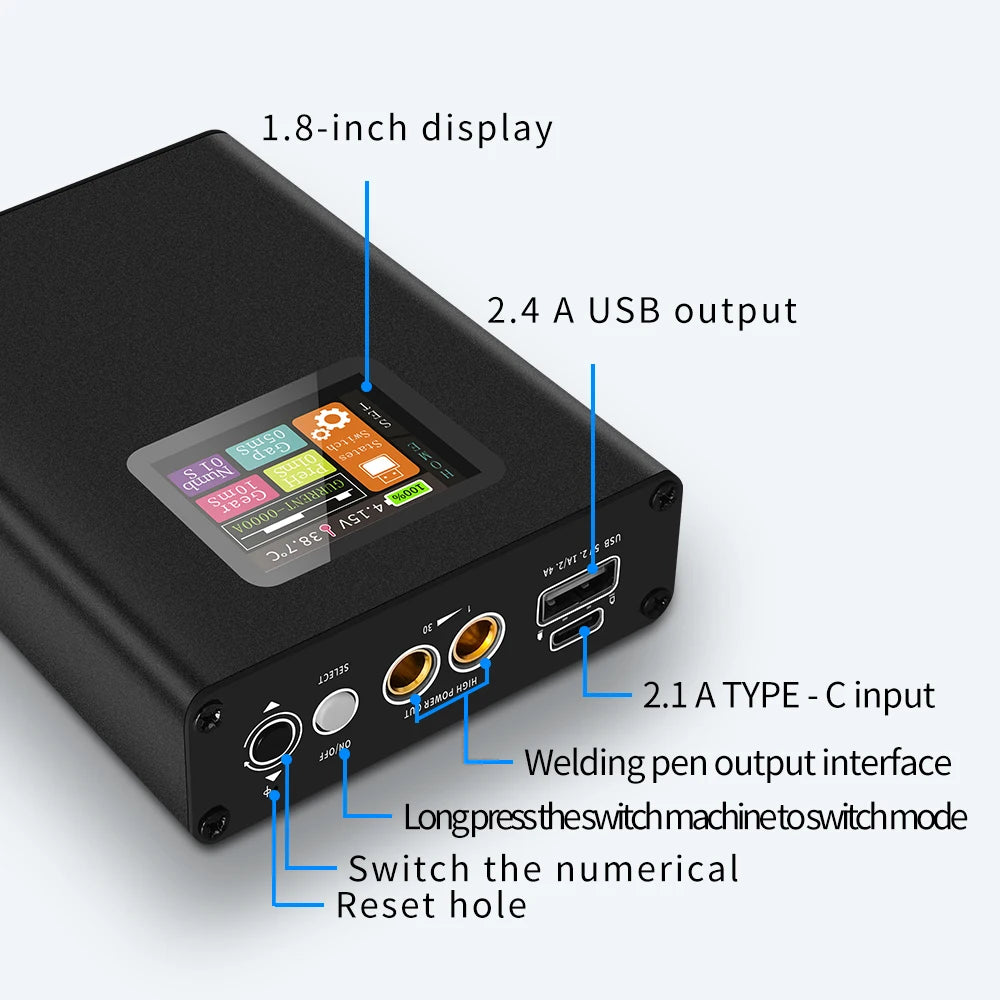

1.Simple operation, firm welding, complete solder joints, 1.8 "LCD color display, adjustable 30 gear, more accurate gear switching welding, more suitable gear output for different materials, better welding effect;

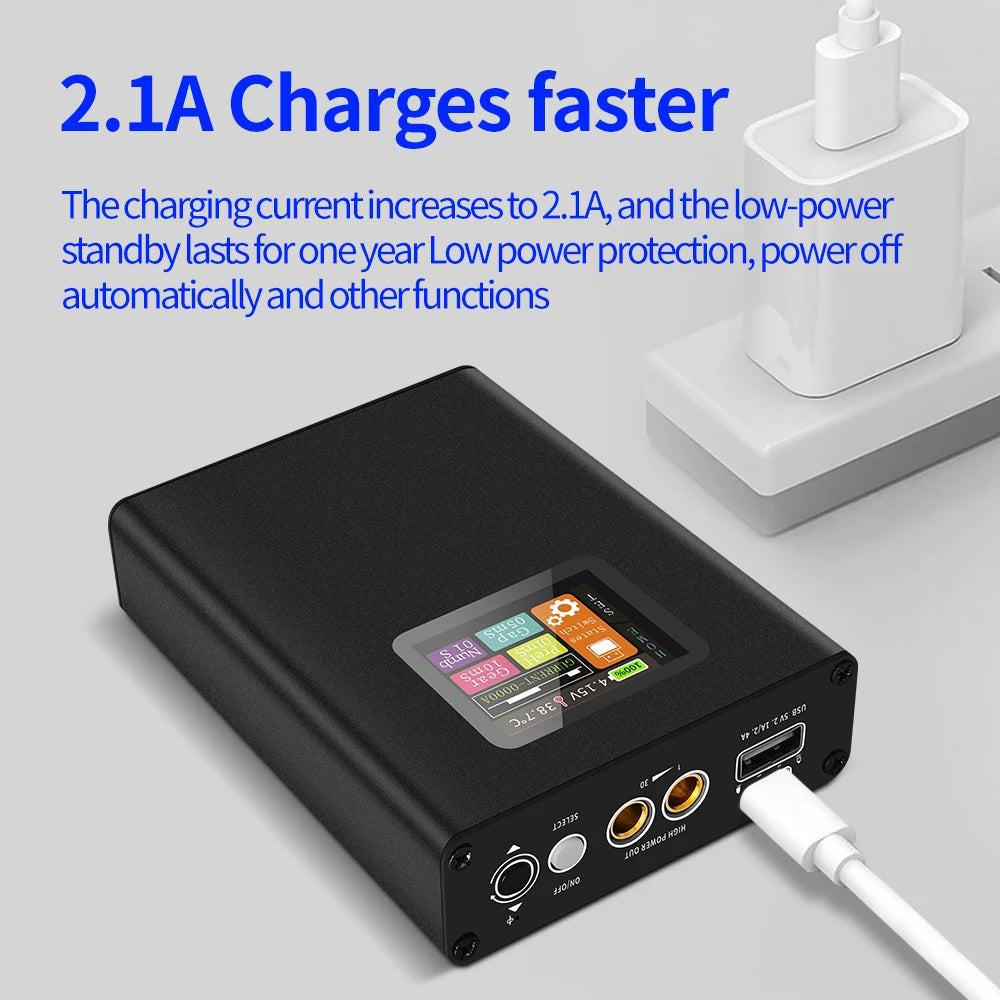

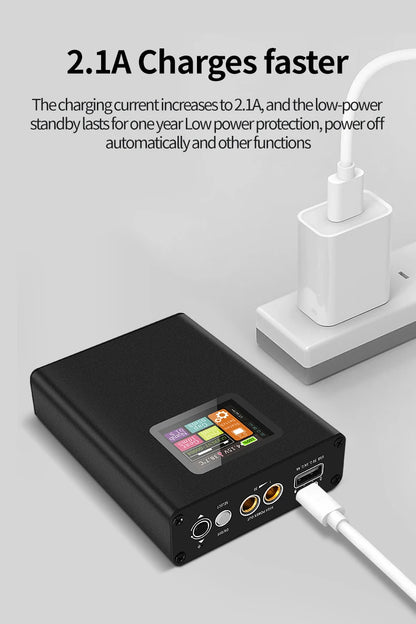

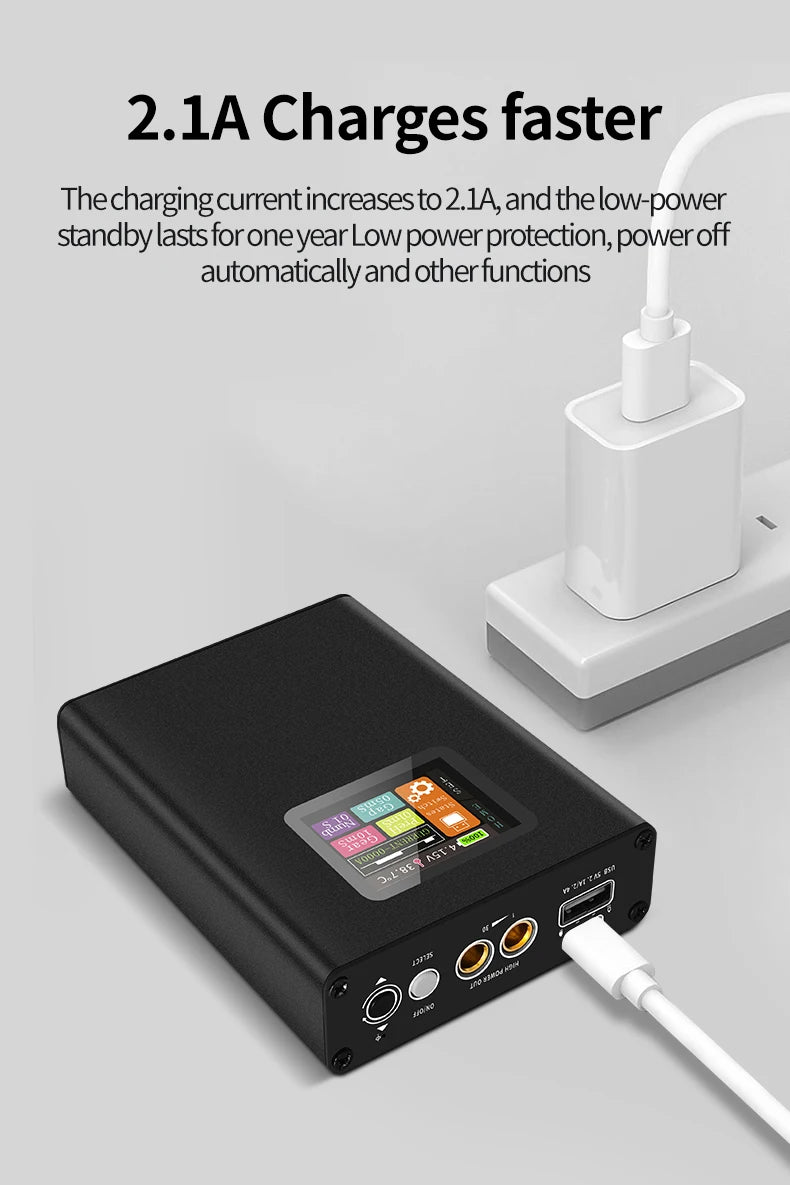

2.1A charging faster Charging current increases to 2.1A, low power consumption standby for one year Low power protection, automatic shutdown when power is off, temperature control protection, real-time temperature monitoring of circuit board, solder joint counting, more accurate welding;

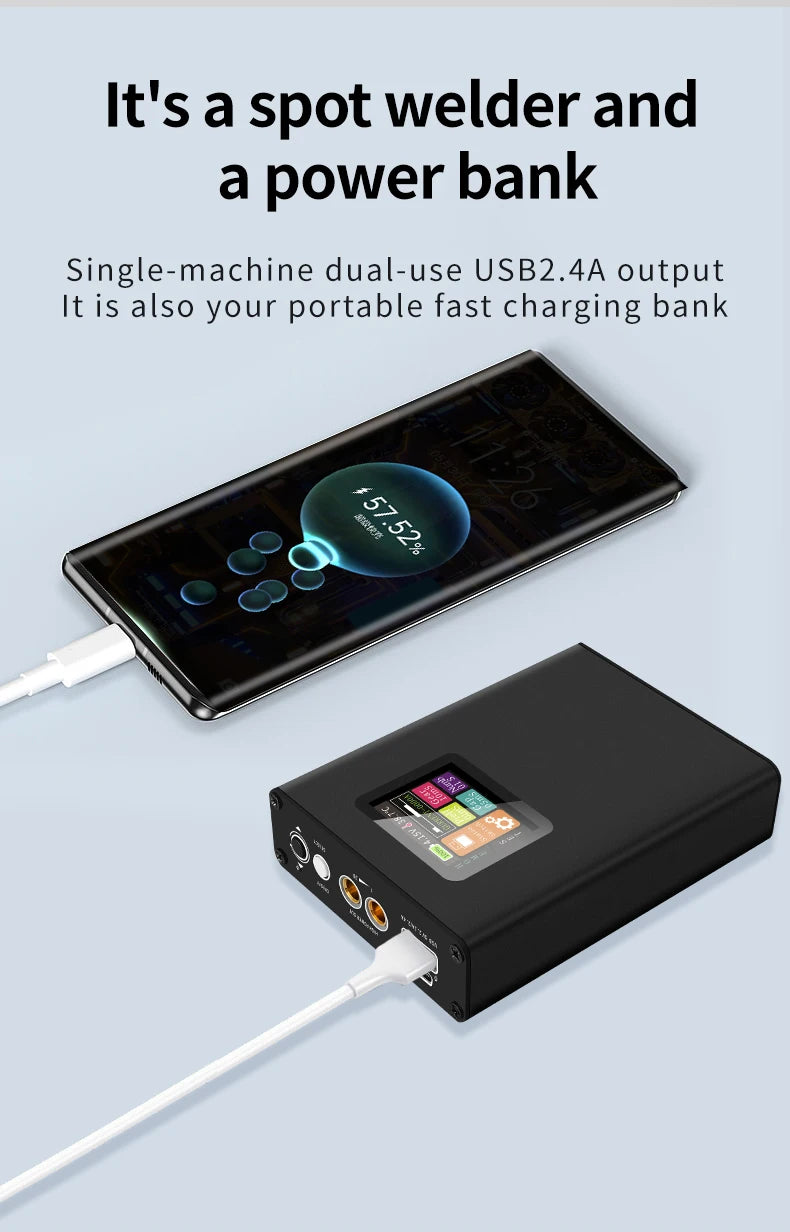

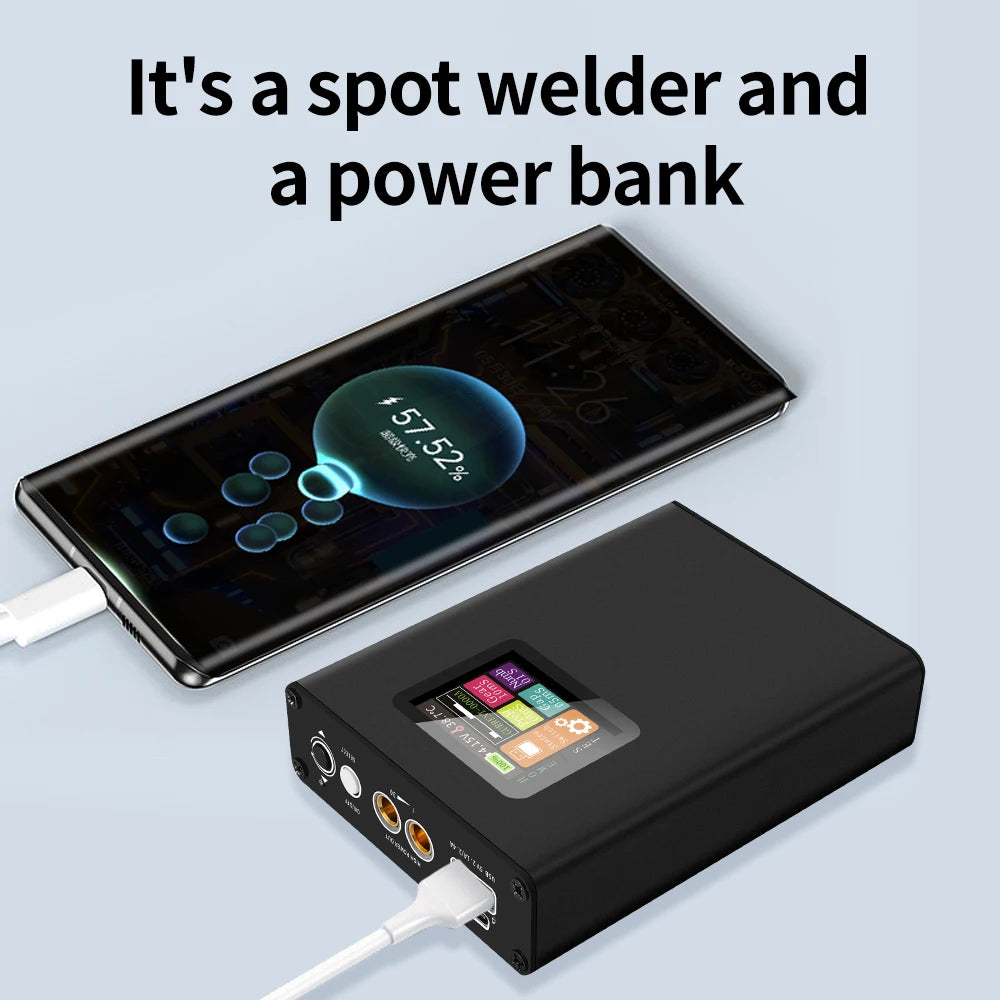

3.One machine dual purpose, convenient for spot welding is also the USB 2.4A output of the charging bank, which is also your portable and fast charging charging bank;

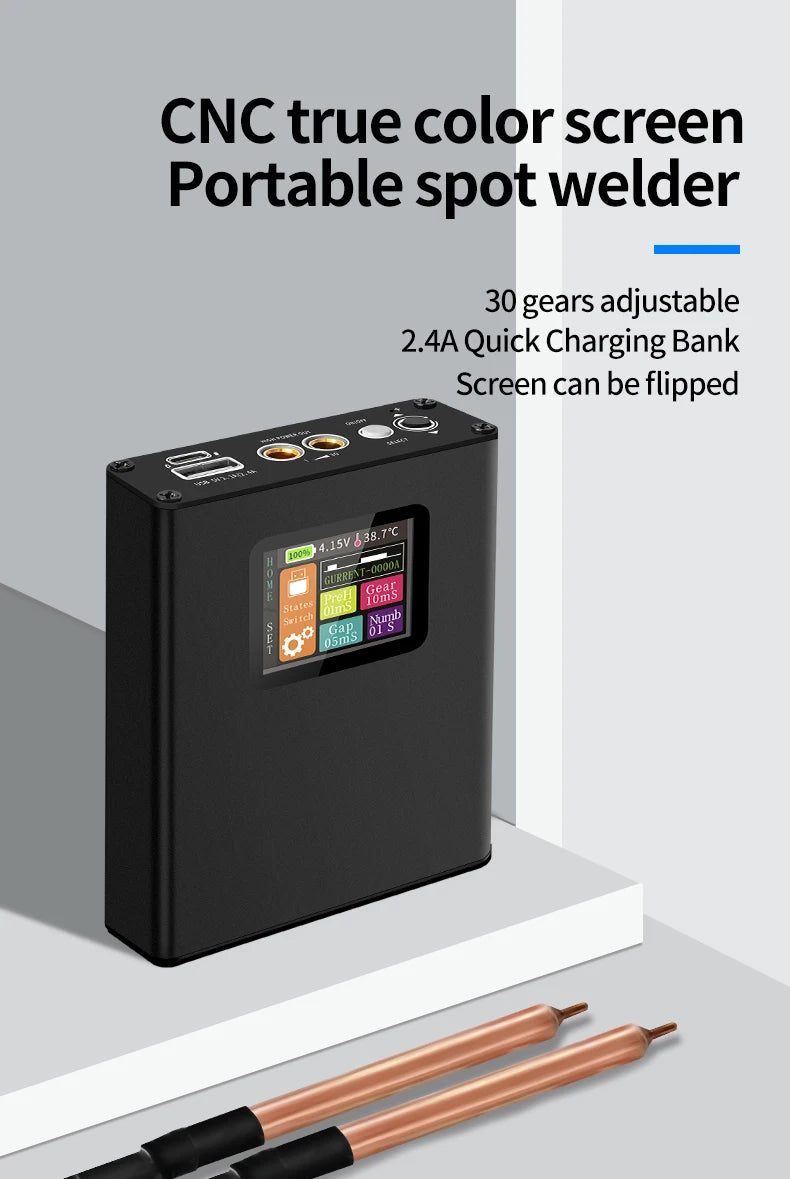

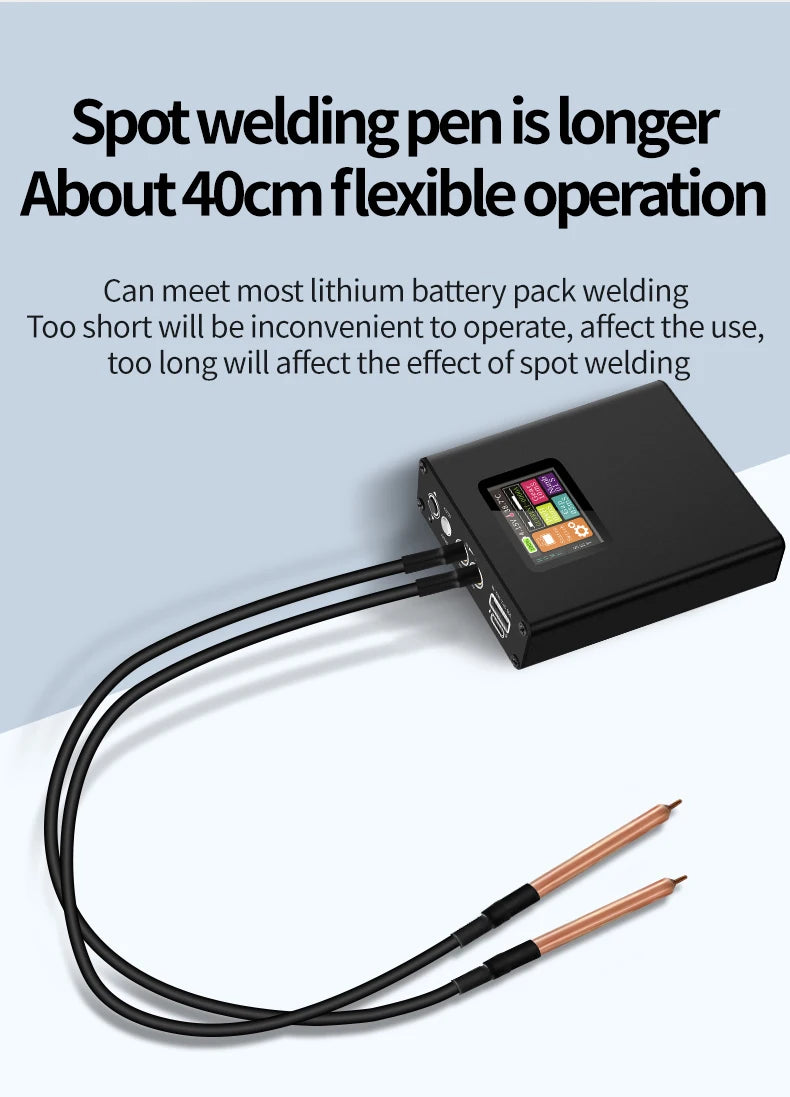

4.The spot welding pen is about 40cm long and flexible to operate, which can meet the welding requirements of most lithium battery packs. If it is too short, it will be inconvenient to operate, affecting the use, and if it is too long, it will affect the spot welding effect;

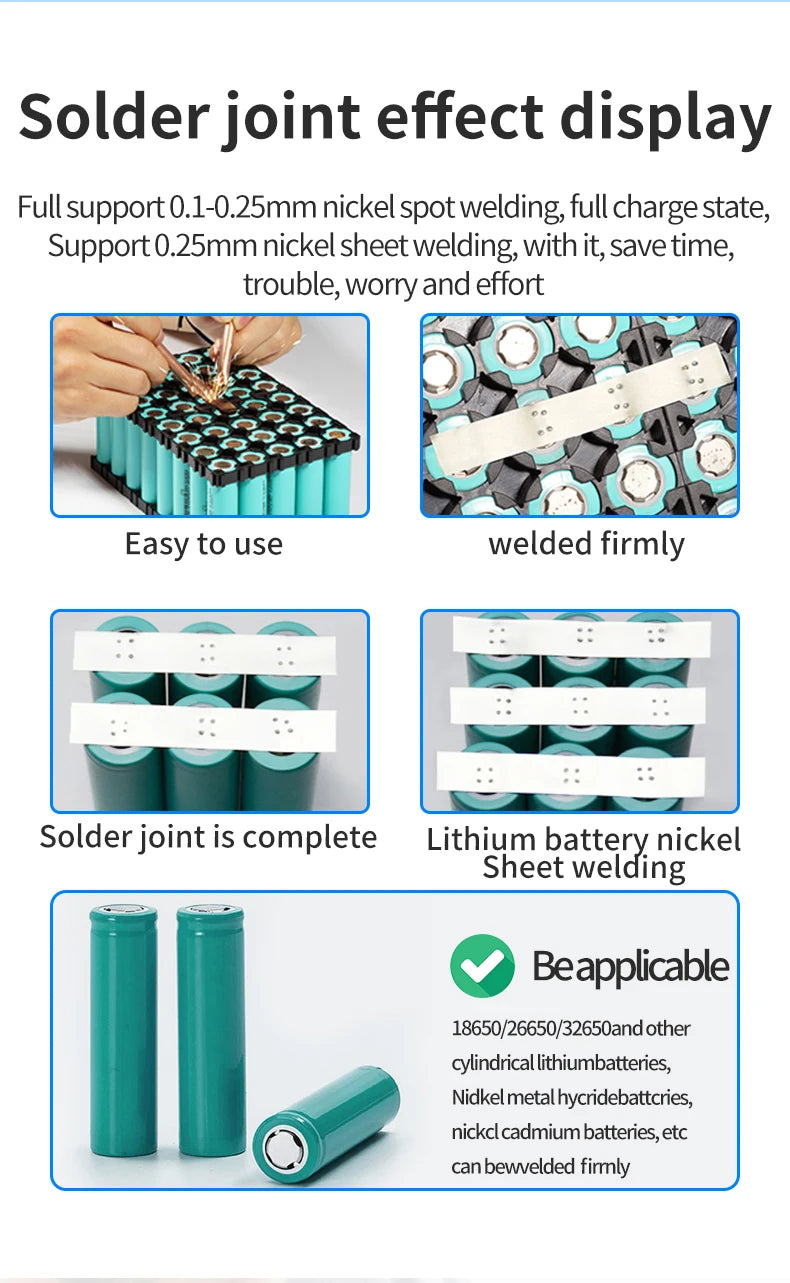

5.The welding spot effect display supports 0.1-0.25mm nickel sheet spot welding in the whole process, and supports 0.25mm nickel sheet welding under full power state. It saves time, trouble and effort

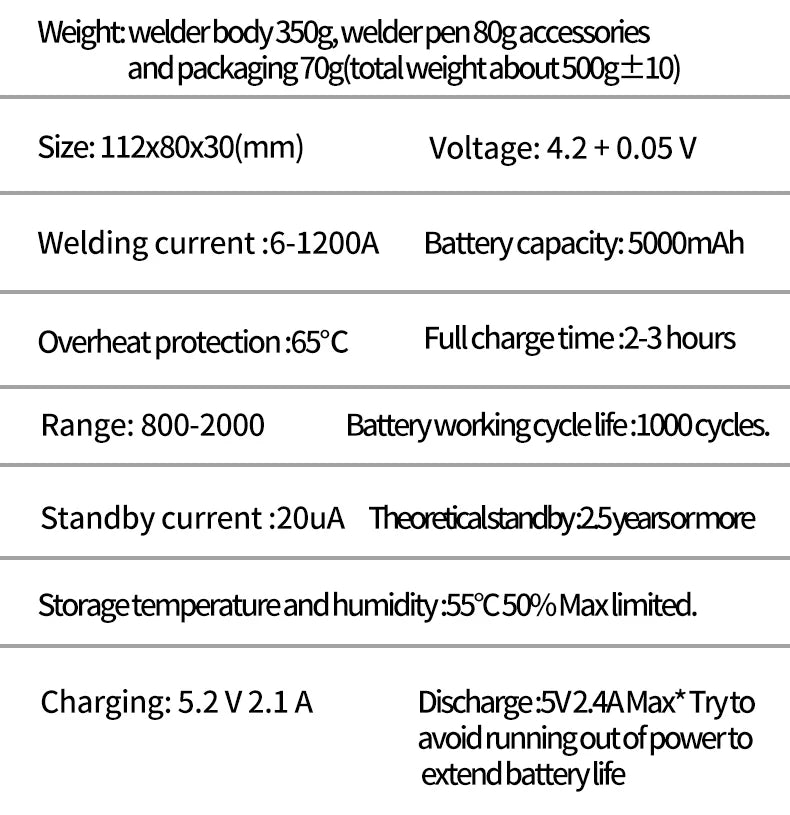

Parameters:
Voltage: 4.2+0.05V
Welding current: 6-1200A
Battery capacity: 5000mAh
Overheating protection: 65°C
Full charge time: 2-3 hours
Endurance: 800-2000 times
Battery shield life: 1000 cycle
Standby current: 20uA
Storage temperature and humidity: 55°C 50% Max limited
Charging: 5.2V2.1A
Discharge: 5V2.4A Max (try to avoid running out of power to prolong battery life)

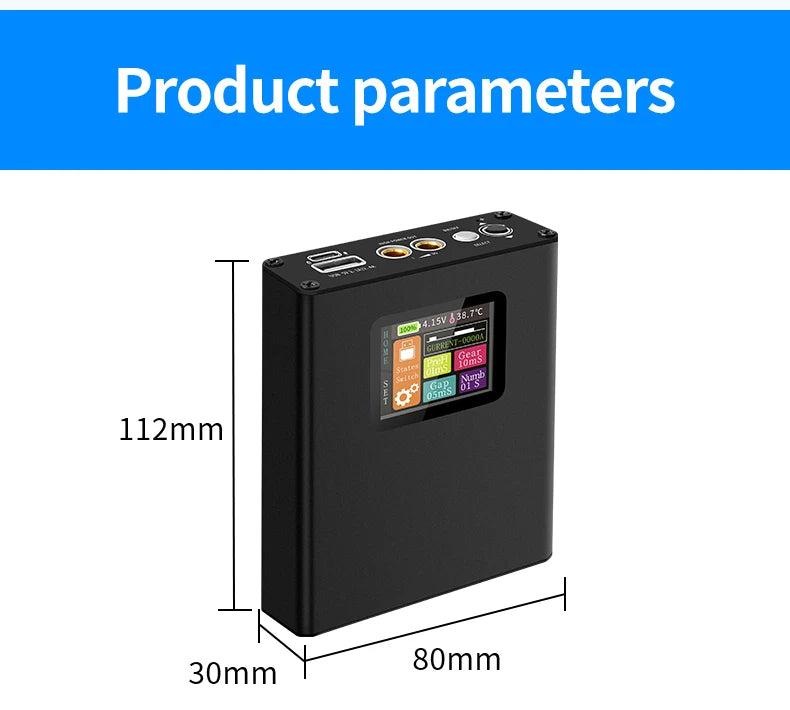

Host size: 112x80x30 (mm)
Application: 18650/26650/32650 and other cylindrical lithium batteries, nickel metal hydride batteries, cadmium nickel batteries can be firmly welded.

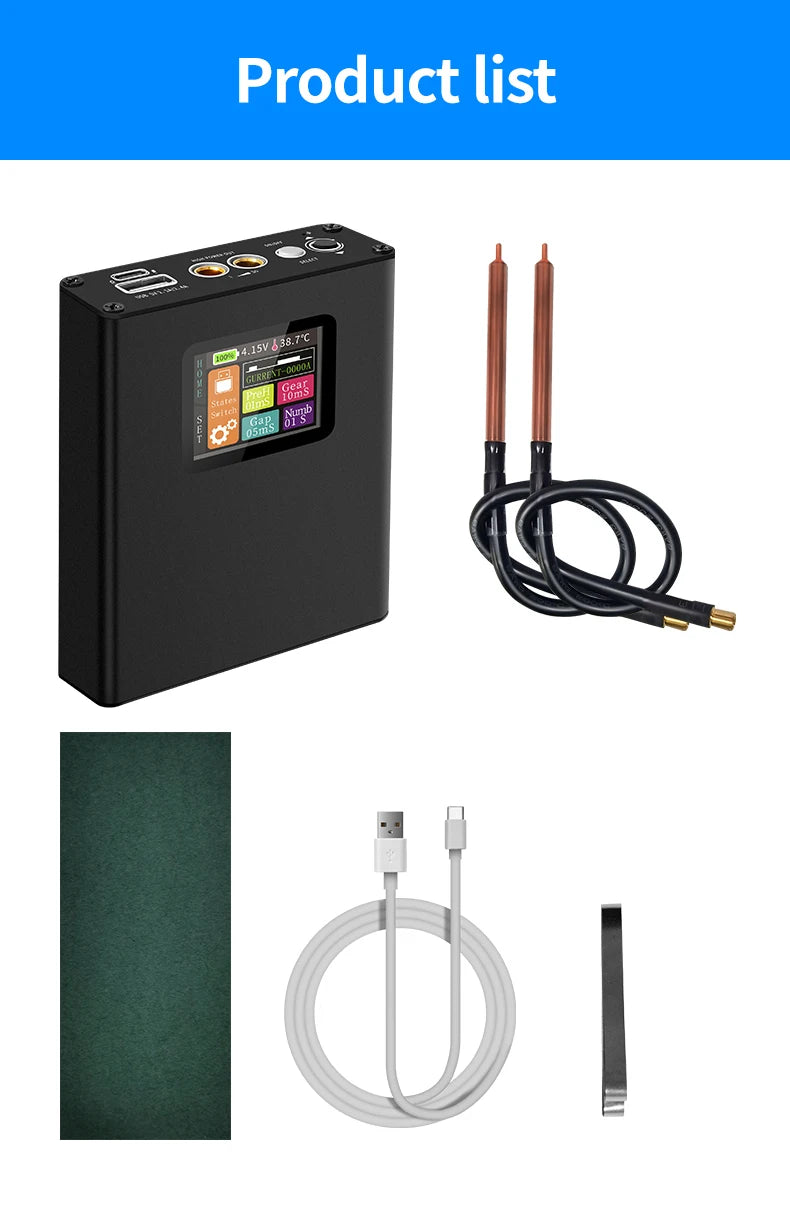

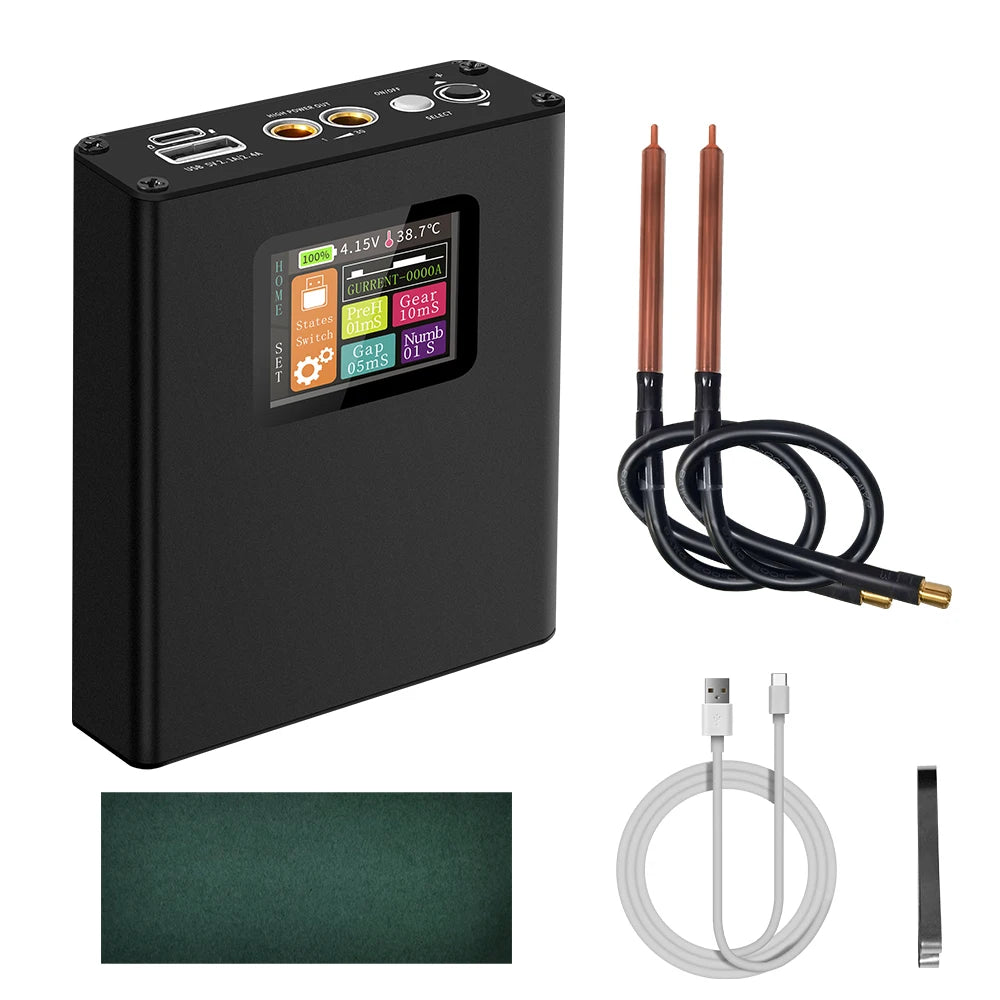

Product list:
1 * Spot welder
2 * Spot welding pen
1 * Data cable
1 * Bare blue paper
1 * nickel plate for hand training

Noted:

Due to manual measurement, the length may deviate by 1-2cm. Please understand.

Due to the fact that the image was uploaded after shooting, it is normal for the display screen to show a slight color difference from the actual object.
