ELM327 V1.5 Bluetooth 4.0 OBD 2 OBD2 PIC18F25K80 ELM 327 V1 5 OBDII Car Diagnostic Scanner ODB2 Auto Tool Code Reader

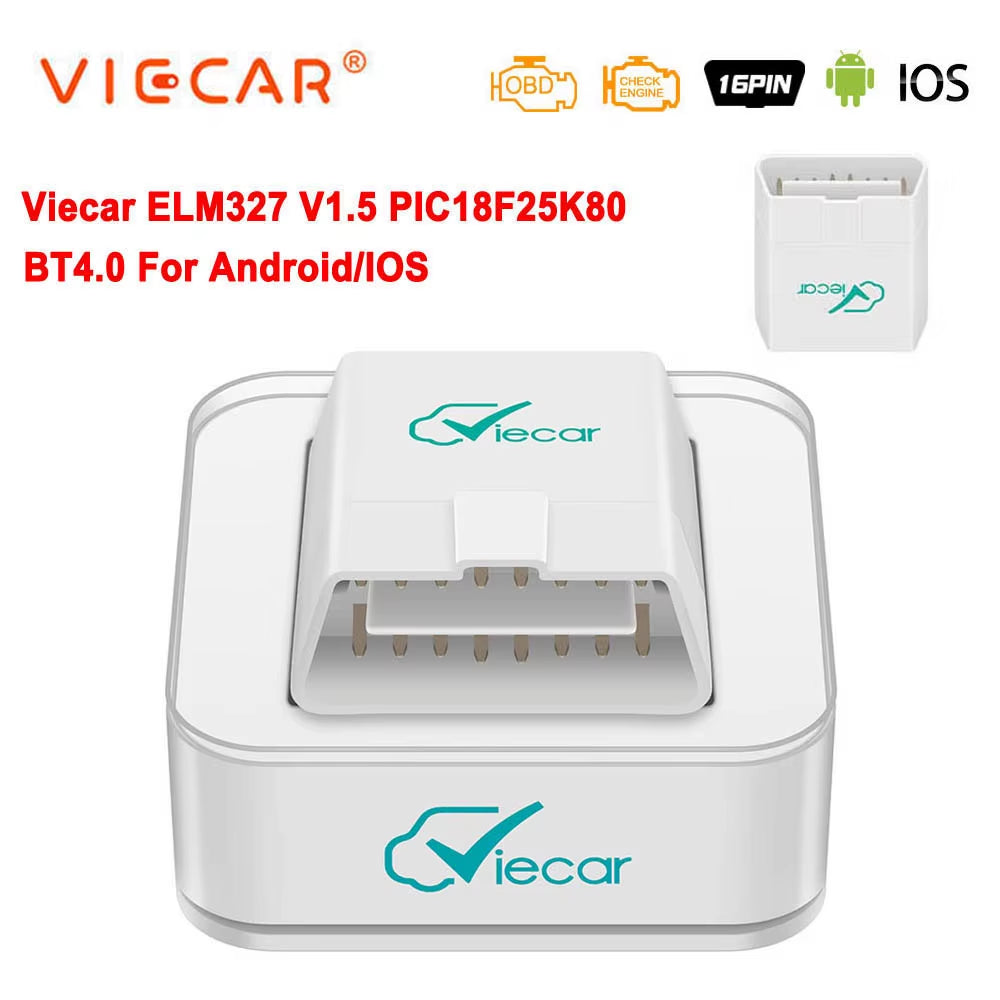

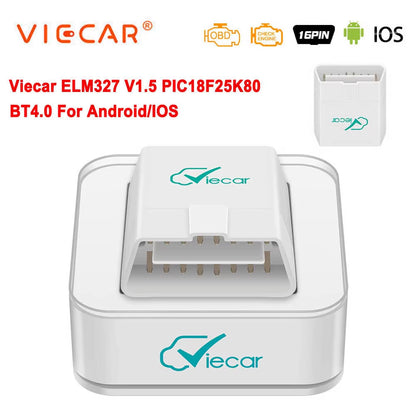

Viecar ELM327 OBD2 V1.5 Bluetooth 4.0 ELM 327 V 1 5 Scanner PIC18F25K80 ODB2 For Android/IOS OBD 2 OBD2 Car Diagnostic Auto tool

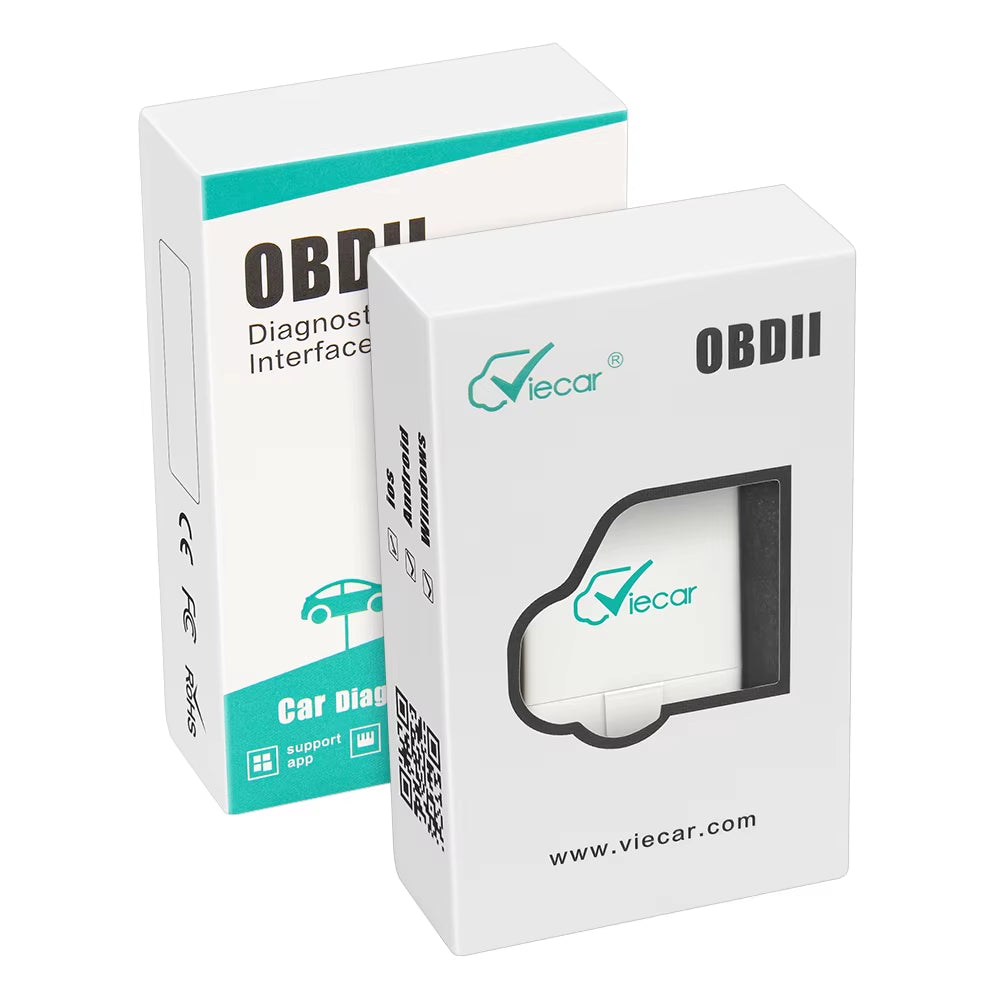

Note：Acrylic box/Carton Viecar ELM327 V1.5 According to customer feedback, this product is compatible for Carista（Software）

Customers Feedback：★★★★★

1.Fast delivery

2.High-quality packaging and quality

3.Many functions, support most cars on the market

Purchase Notes!!!

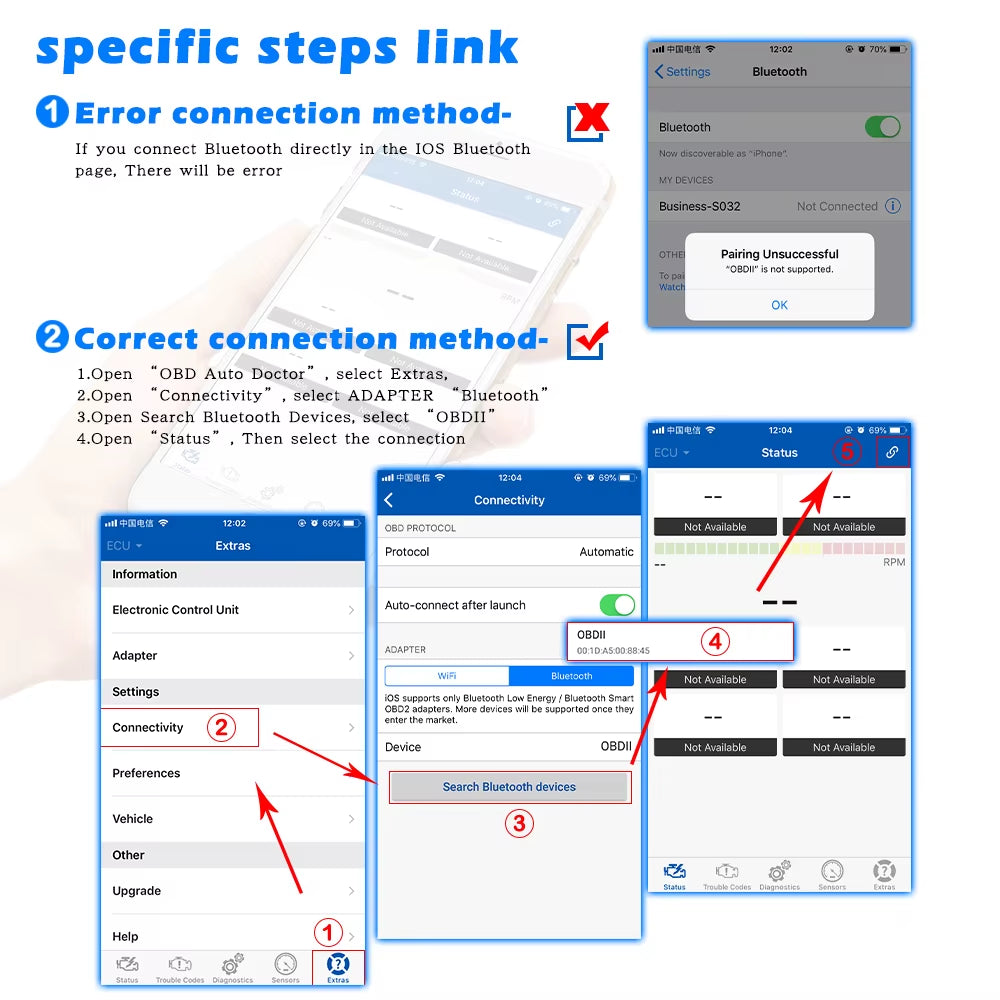

Some customers have feedback that the bluetooth will not connect when they connect to IOS，please follow the tips：（The IOS system cannot support Bluetooth 4.0 ELM327 connection on the Bluetooth page）

1.Plug in the Viecar to the OBD2 interface，and Open the IPhone's Bluetooth first

2.Open the software(like AUTO Doctor)

3.Choose "Extras"，then click "Connectivity "，choose"Bluetooth"，and click "Device",choose "Viecar BLE"

4.Connect Bluetooth in the"Connectivity "，then refresh software

Software features:

Software can perform the following operations:

Read error diagn

ostic codes - General and manufacturers special use, and display their meaning

(Database has over 3000 generic code definitions)

Clear the error code and shut off the MIL ( "Check Engine" light)

Display current sensor data, comprising:

Engine revolutions p

er minute (RPM)

The calculated load value

Coolant temperature

Fuel System Status

Speed

Short-term fuel situation

Long-term fuel situation

Intake manifold pressure

Injection advance time

Intake air temperature

Air flow rate

Absolute throttle position

Oxygen-sensing voltage associated with the short-term fuel state

Fuel System Status

The fuel pressure

Fuel consumption monitoring and many other data ......

Future software features:

Data chart display and logging

Freeze frame data

Continuous and discontinuous oxygen probe results

and more...

Supports OBDII protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)Product Parameters for Viecar V1.5：

1.Communication method:BT4.0-Wireless

2.Software platform: Support forAndroid / IOS

3.Operating voltage: 9V~16V

4.Operating current: 45mA

5.Operating temperature: -40 C~85℃ C

6.Operating humidity: <60%

7.Dimensions: 45mm*40mm*18mm

8.Supported vehicle: OBDII protocol vehicleViecar BT4.0-Wireless is no longer simply a screen information display system, but through stunning head-up display (HUD)：

Let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.

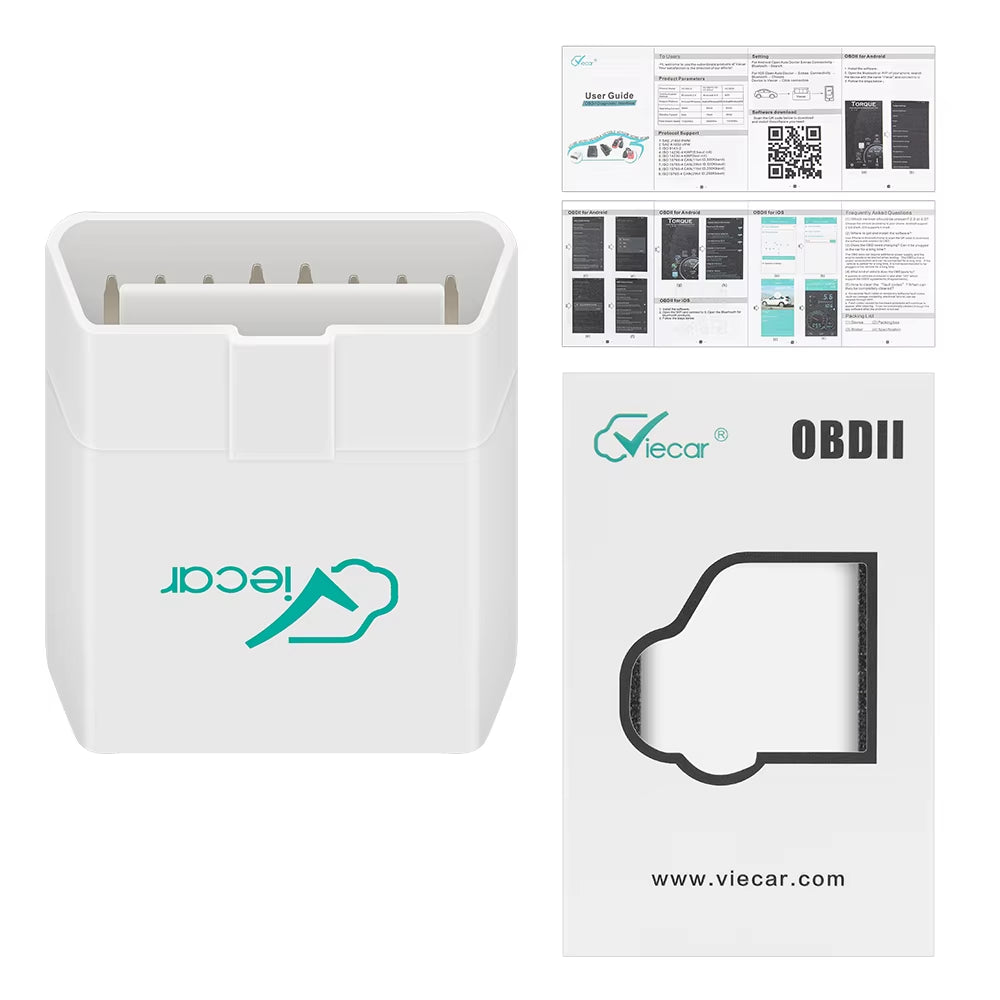

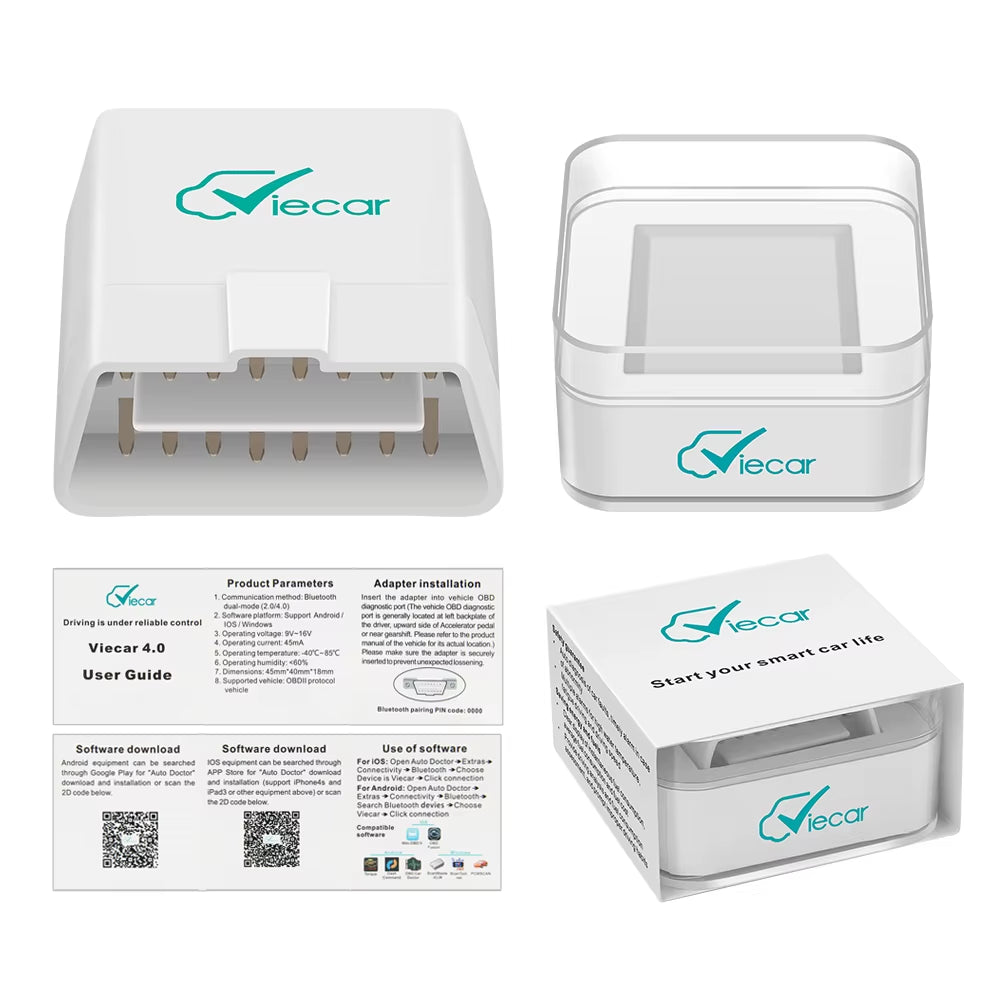

1 X Viecar Scanner

1 X User Manual
