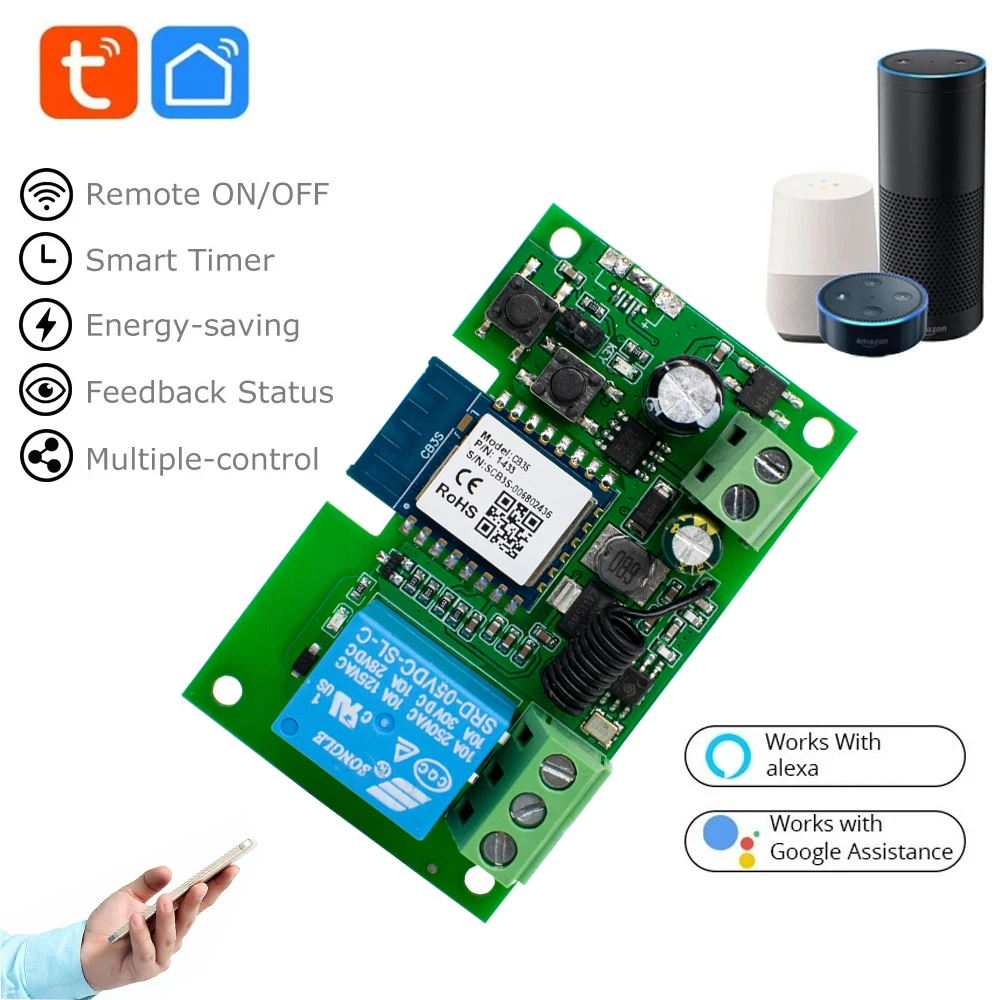

Tuya Smart Remote Control Wireless Wifi Switch Module 7-32V 12V 24V 220V RF Receiver 10A Relay Work with Alexa Google Home

Special Note:

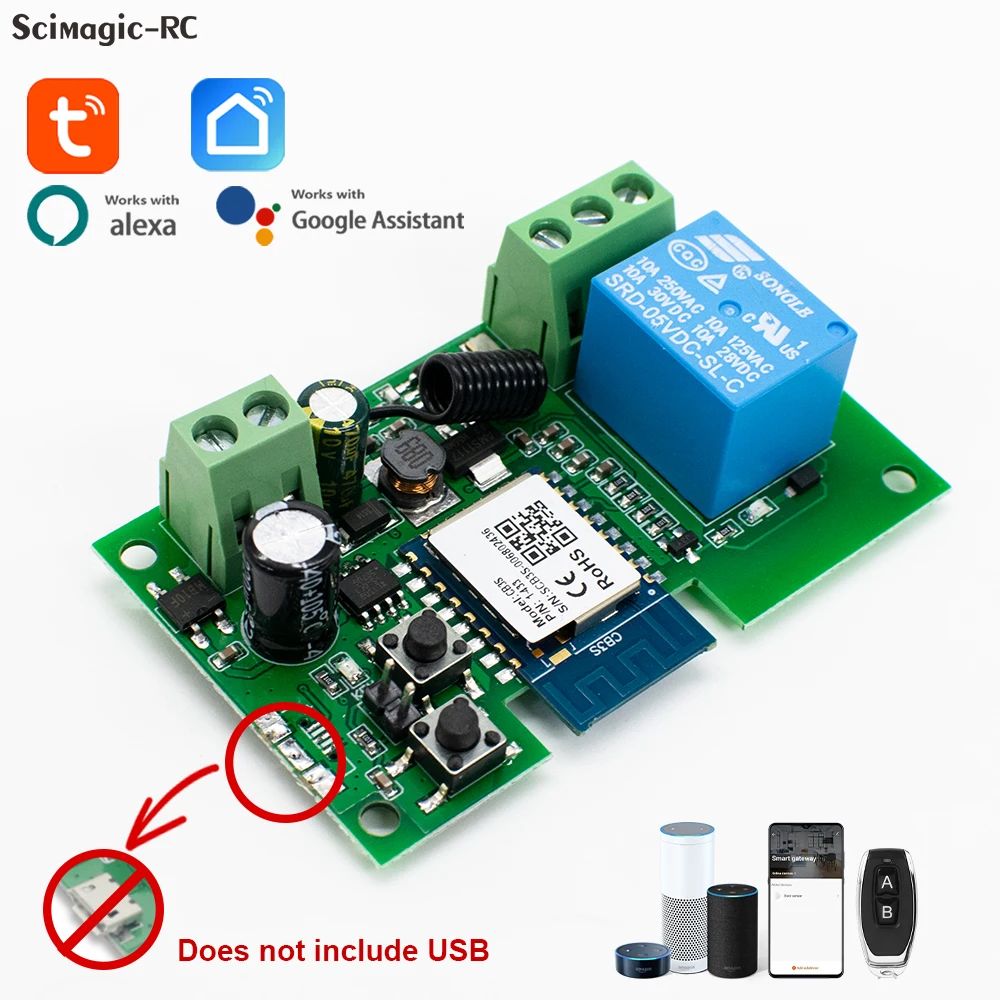

The latest version does not support USB 5V.

Product Application Area

Factory \ Farm\ Office\ Instrument\ Ventilation \ Pump \ Motor \ Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

Tuya smart Jog Inching/ Self-locking WIFI Wireless Smart Home Switch Remote Control with Alexa

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.

In self-locking mode, customers can remotely turn on/off connected devices immediately.

When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .

WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

RF mode , you can control the board with RF 433 remote controller.

Only supports 433mhz learning code remotes.

Features:

*Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
*Supports status tracking: device status timely provided to the Tuya / Smart life.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.
*Supports max 8 enabled scheduled/countdown/loop timers for each device.
*Voice Control: Compatible with Alexa, for Google Home/Nest.

Supported Functions Include:

*Remote turn on/off.
*Timing schedules.
*Device sharing.
*Group management.
*Works with Echo, Echo Dot, Tap.
*Works with Google Home.
*Compatible with Alexa.

Special Reminder:

The old version supports USB5V input, while the new version does not support USB5V input.
We default to sending you a new version.

Specifications:

Supports to control different voltage ranges
USB port power supply more convenient
Relay lifespan: ≥one million times
Working mode: inching / self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: Tuya / Smart life on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot.
Operating temperature: -40 degrees to +70 degrees.
Operating Humidity 40%-80% RH.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

lnching Switch(Delay time 1s)Appilcation Scenarios

Work For Door,Garage,Elevator,Rolling door,Computer,Car,Washing machine,Coffee machine etc.

Self-locking Switch Application Scenarios

Work For Light,Fan,Refrigerator,AC contactor,Water pump,Humidifier,Security sensor etc.

Multiple control methods to enjoy smart life.

APP Remote control, Voice control, 433 RF Remote Control.

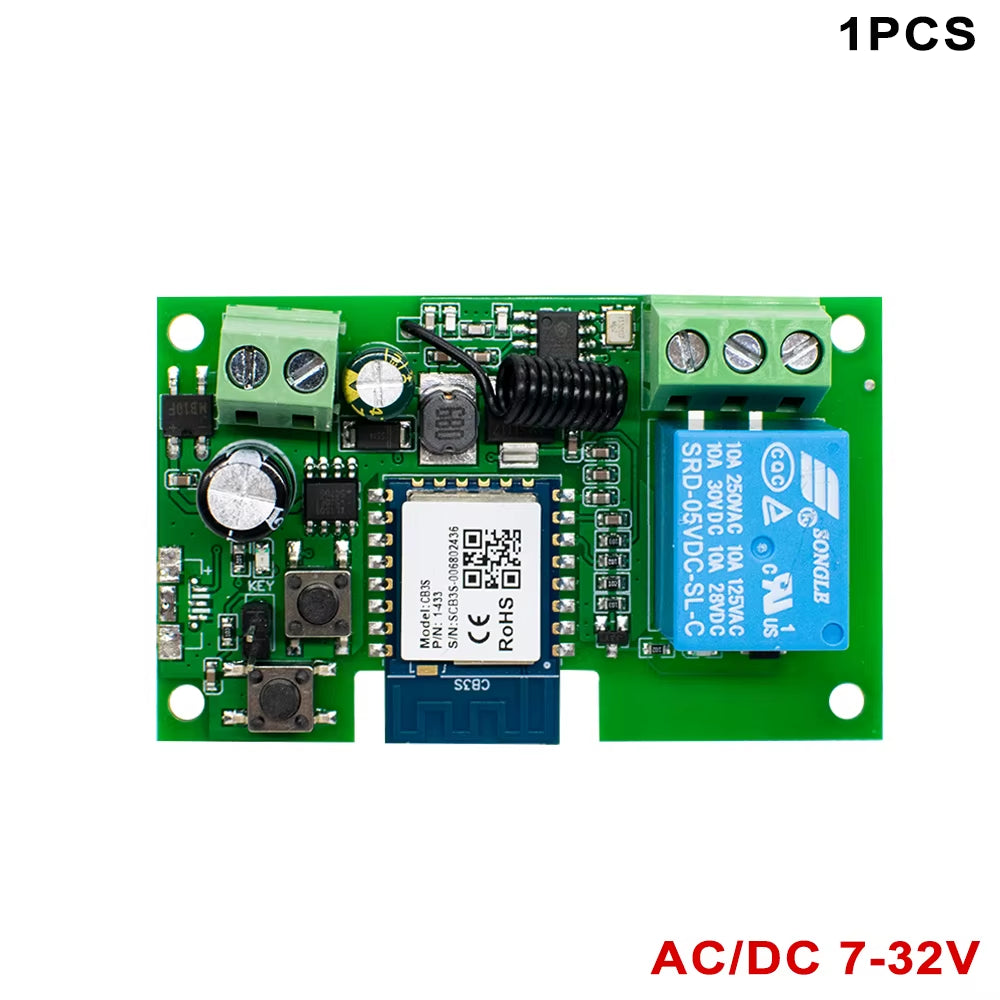

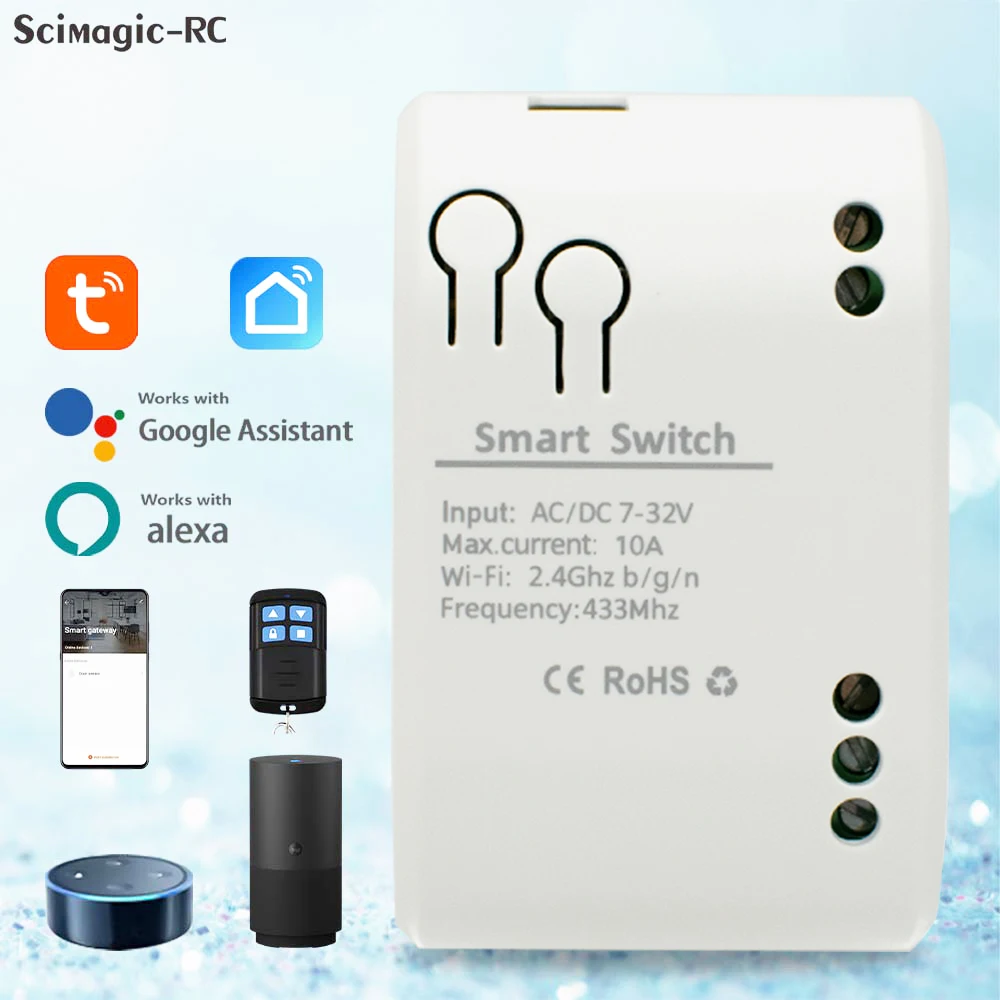

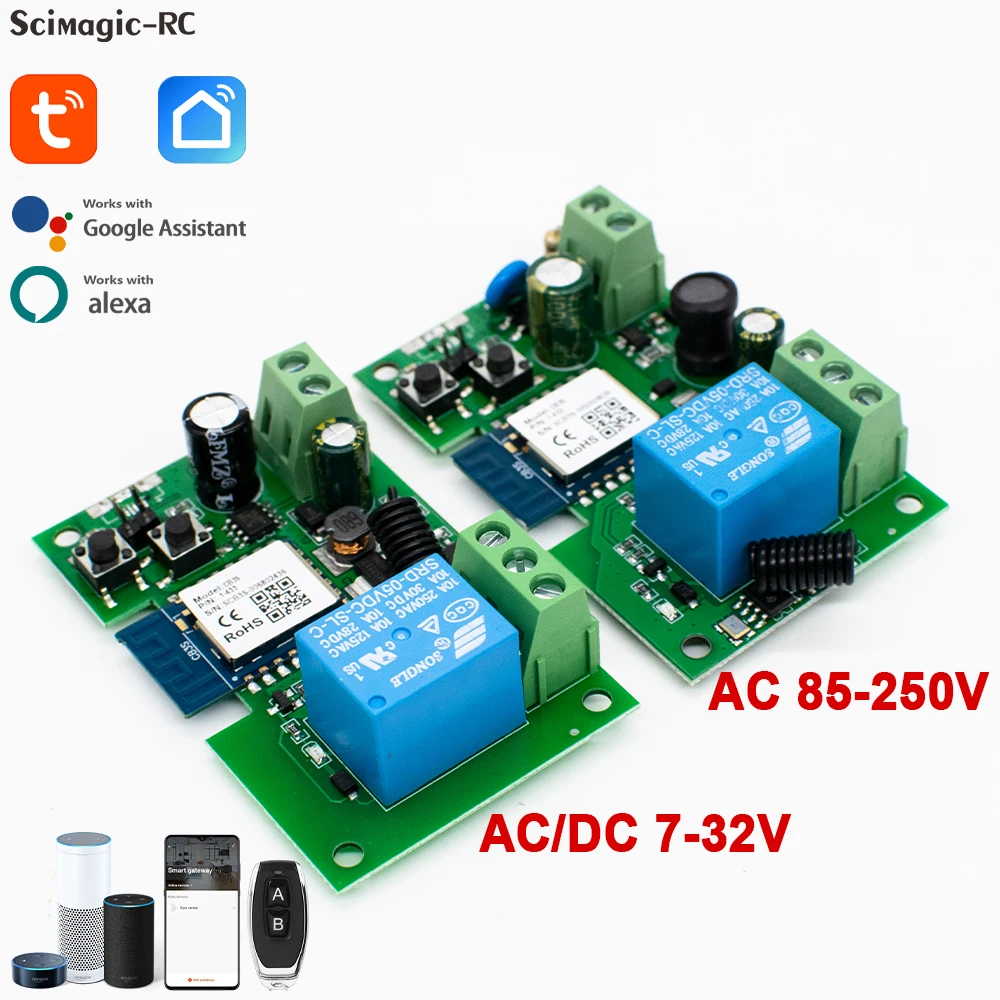

Input voltage : DC/AC 7-32V , Micro USB 5V input.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size : 72*45*30.
The life of Relay Model is more than 1,000,00.

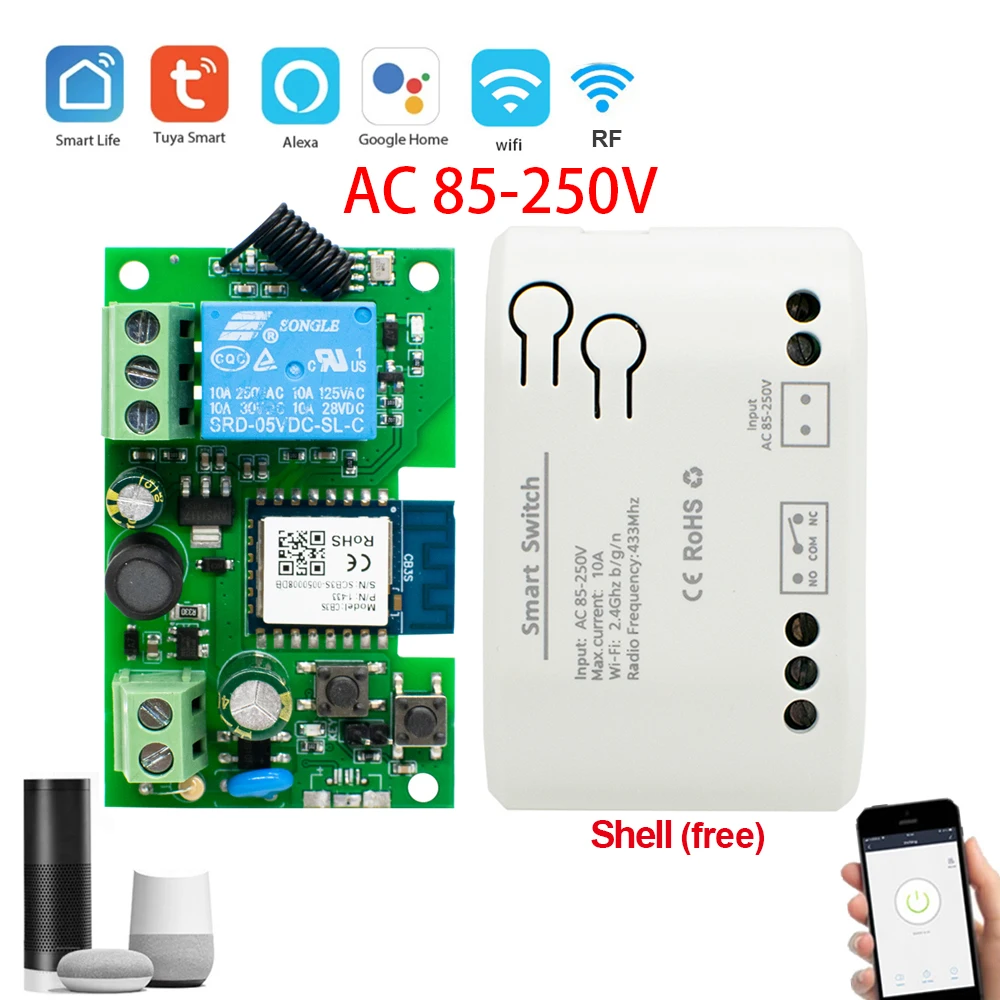

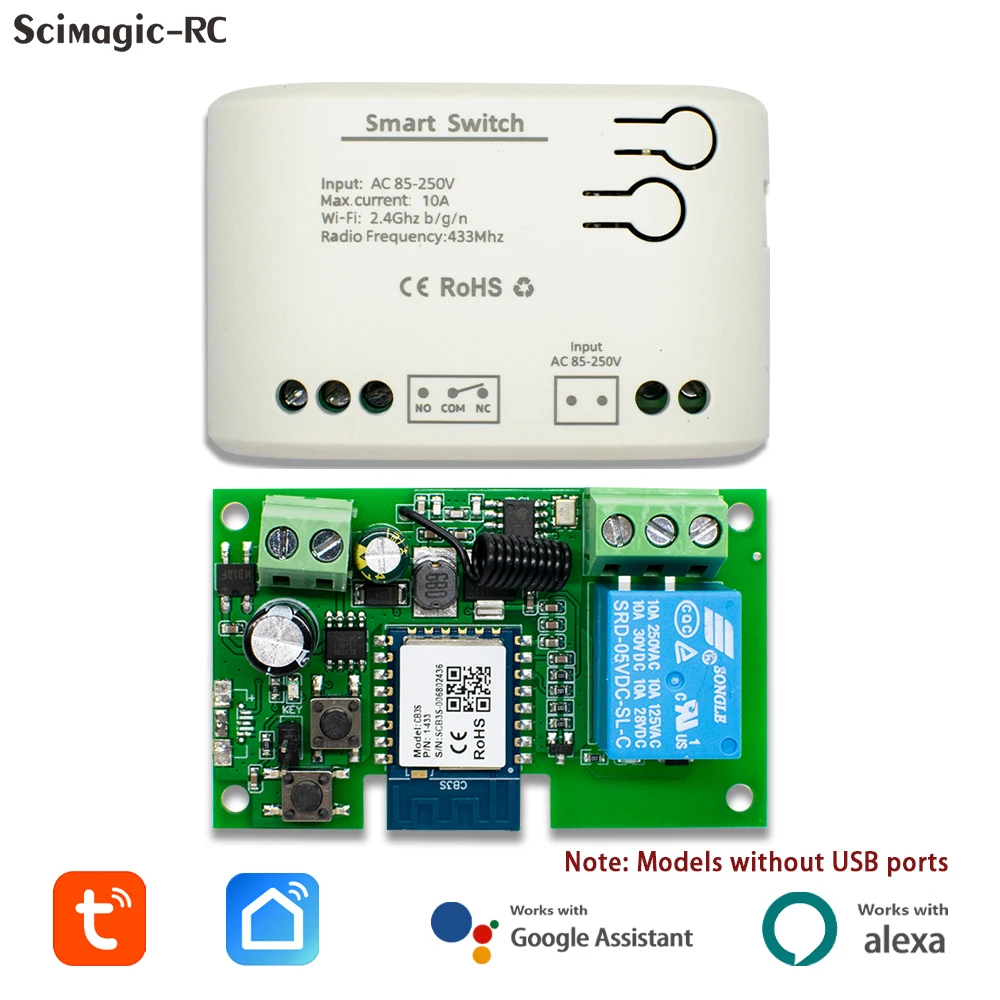

Input voltage : AC 85V-250V .
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size : 72*45*30.
The life of Relay Model is more than 1,000,00.

433MHz Remote Control:

Operating voltage: (Without battery),
Transmitting frequency: 433MHz
Encoding Type: Learning code
Transmission distance : 10-100M (Open field)
Size: approx 101*40*15mm

NOTE: The system can store for 20 pcs of remotes , if the remote get more than 20 pcs , the initial remote control will be lost .
